How to Choose the Right EAS Anti-Theft Gate: Key Considerations and Selection Guide

Supermarkets, retail stores, and shopping malls often install Electronic Article Surveillance (EAS) gates at their entrances to ensure product security. These anti-theft gates work in conjunction with anti-theft tags (such as RFID tags, acousto-magnetic (AM) tags, etc.) to help businesses effectively prevent theft. However, when choosing an EAS anti-theft gate, not all gates are suitable for every need. To ensure the system works efficiently, businesses must consider several key factors when selecting the right gate.

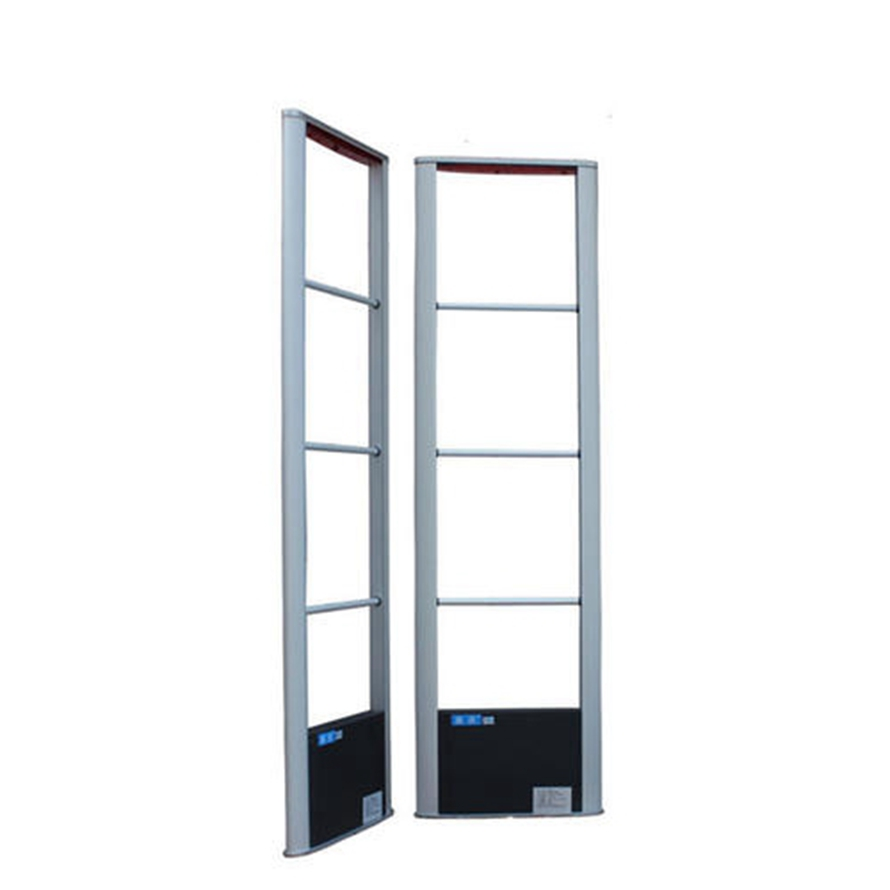

1. Choose the Right EAS Gate Based on Gate Width

The first consideration in selecting an EAS anti-theft gate is the gate width, which refers to the actual working width between the two gates. Different anti-theft gates have varying detection ranges, and the gate width should match the size of the actual entrance. If the gate width is too small, the sensors may not effectively detect the tagged items or people passing through; if the gate width is too large, the system's detection accuracy might be compromised, leading to missed or false alarms.

Typically, EAS anti-theft gates have a detection range of 1.2 meters to 2.5 meters. To ensure optimal performance, businesses should select a gate model based on the actual width of the entrance and expected customer traffic.

http://www.securitylabeltag.com/product/EAS_Systems/74.html

2. Match the Alarm Range of the Gate with the Alarm Distance of the Tag

Each type of anti-theft tag has a different alarm distance, and the effectiveness of an EAS gate depends on how well it matches the tag's alarm range. Businesses need to ensure that the selected EAS gate is compatible with the tags they use and that the gate’s alarm range is suitable for the tag’s detection distance.

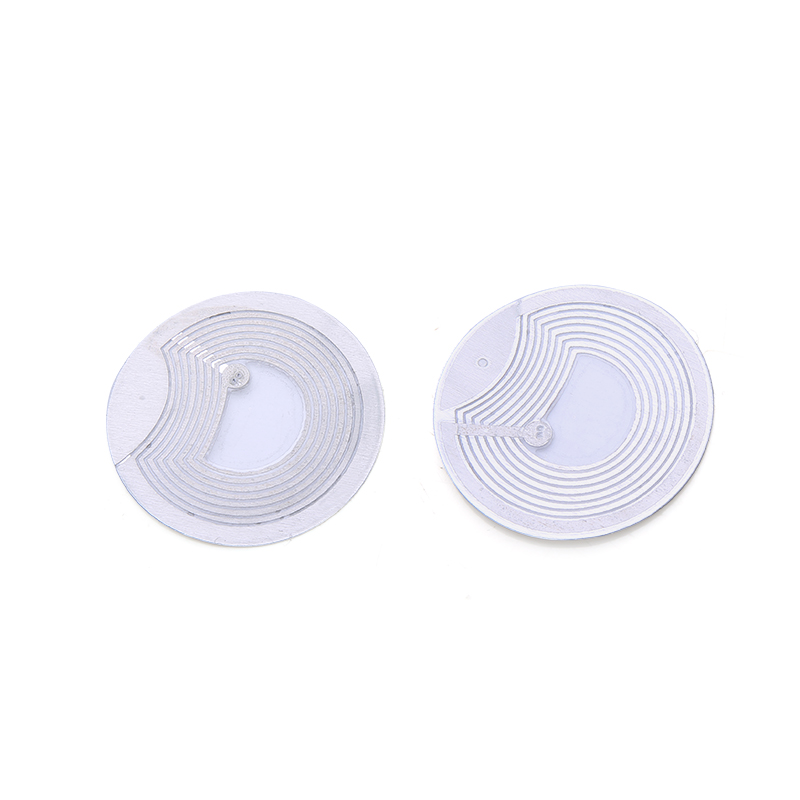

• RF Tags (Radio Frequency Tags): RF tags are typically used with RF gates, and their alarm distance is usually between 0.8 meters and 1.5 meters. When selecting an EAS gate, businesses should ensure that the RFI gate’s detection range is sufficient to cover the tag’s alarm distance, avoiding missed detections due to insufficient signal reception.




  http://www.securitylabeltag.com/product/EAS_RF_Labels/44.html

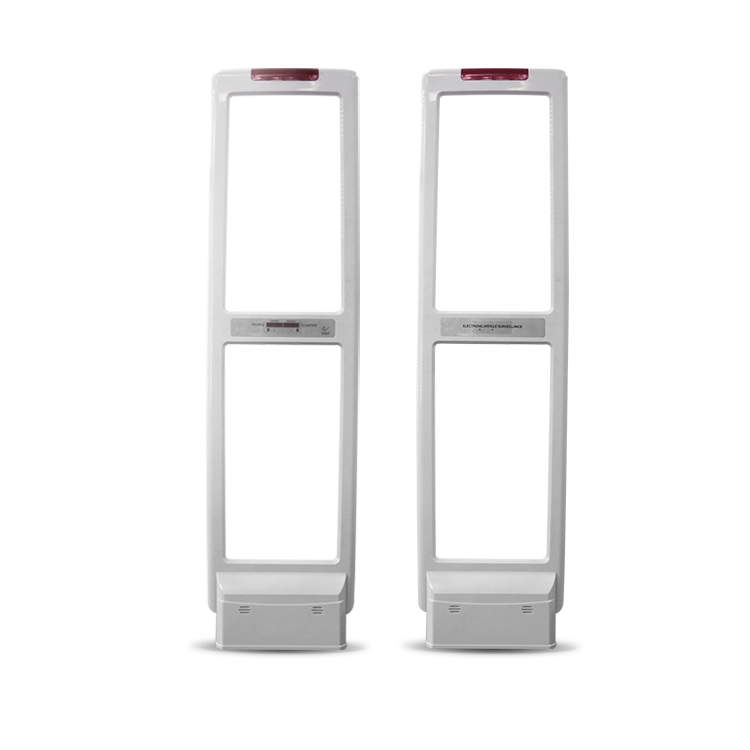

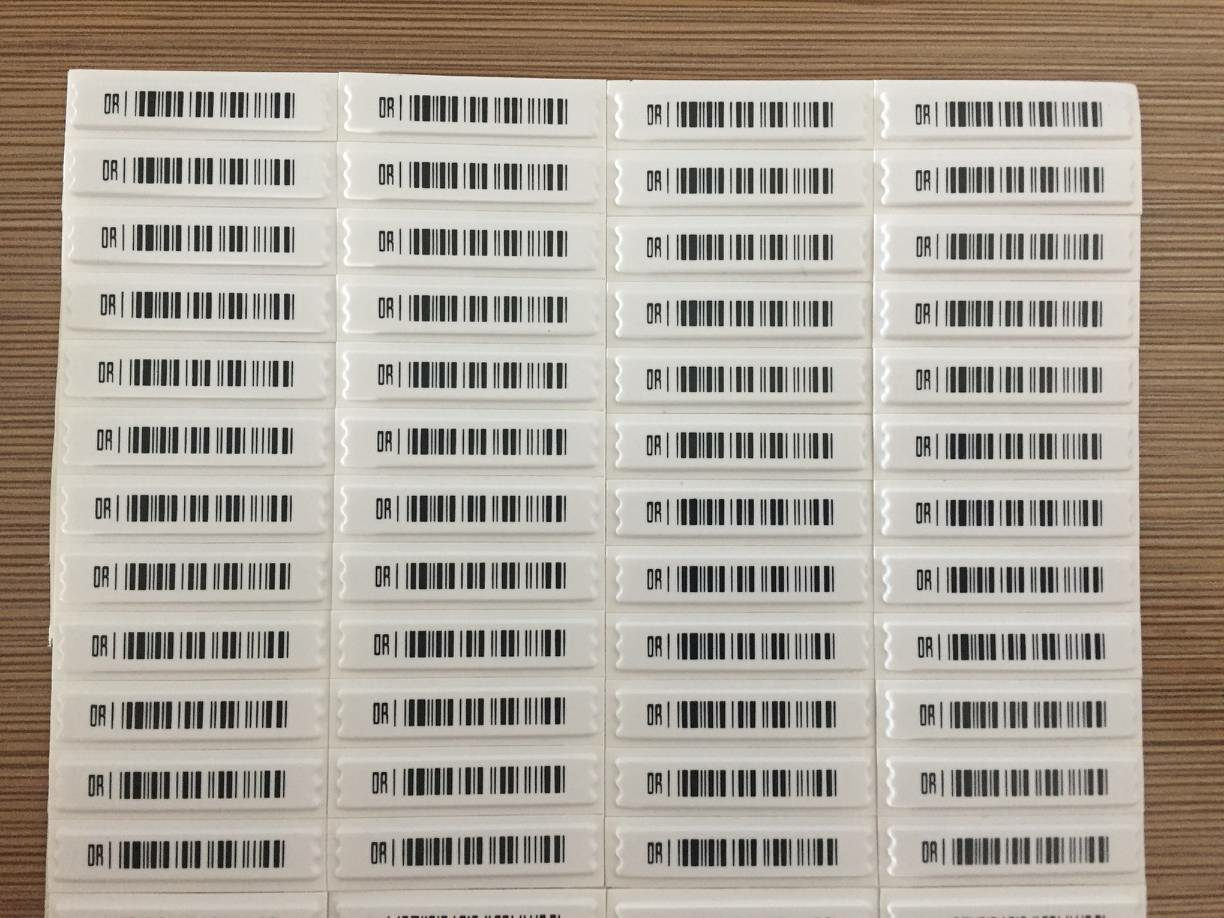

• AM Tags (Acousto-Magnetic Tags): AM tags work with AM gates, and their alarm distance generally ranges from 1.2 meters to 2 meters. AM gates tend to have a wider detection range than RFID gates, making them ideal for wider entrances. If the store has a larger doorway, an AM gate with a longer alarm detection range would be a better choice.



  http://www.securitylabeltag.com/product/EAS_AM_Label/35.html


To ensure the best anti-theft results, the alarm range of the gate should be equal to or greater than the alarm distance of the tags. It’s also a good idea to have some extra margin to ensure that the tag is reliably detected when passing through the gate.

3. Sensitivity and Adaptability of the Gate

The sensitivity of the EAS gate directly affects detection accuracy. Businesses should choose a gate with high sensitivity, especially for high-traffic areas. Low sensitivity may result in missed detections, while excessive sensitivity may lead to false alarms. Therefore, selecting an EAS gate that allows sensitivity adjustment is important, as this feature helps tailor the system to different environments.

4. Aesthetics That Match Store Style

Besides performance, the appearance of the EAS anti-theft gate is also a crucial factor in selection. The gate should blend with the store's overall design and decor, while maintaining an efficient anti-theft function. Modern retail stores often prefer transparent or minimalist designs for their EAS gates to ensure that security measures are discreet and do not disrupt the store's aesthetic.

5. Ease of Installation and Maintenance

Ease of installation and ongoing maintenance is another important consideration. Choosing an EAS gate system that is easy to install and maintain can help reduce long-term operational costs. For example, some EAS gates come equipped with intelligent self-diagnosis features, enabling businesses to monitor the system's health in real-time, detect issues early, and perform timely repairs to minimize downtime and disruption to daily operations.

6. Balancing Cost and Effectiveness

The price of EAS anti-theft gates varies depending on the brand, technology, and features. While it’s important to stay within budget, businesses should not compromise on quality. The durability, reliability, and detection accuracy of the anti-theft gates directly affect the overall anti-theft performance. Therefore, businesses should aim for a balance between cost and effectiveness by choosing a cost-effective EAS gate that offers the best value over time.

http://www.securitylabeltag.com/product/EAS_Systems/110.html

Conclusion

Selecting the right EAS anti-theft gate is crucial for preventing theft and enhancing the shopping experience for customers. When making a choice, businesses must consider gate width, alarm range, compatibility with tags, sensitivity, aesthetics, ease of installation, and maintenance. Most importantly, the gate’s alarm range must match the alarm distance of the anti-theft tags to ensure optimal detection performance. By considering all of these factors, businesses can select an EAS anti-theft gate system that is both effective and efficient, safeguarding products and improving store security.
