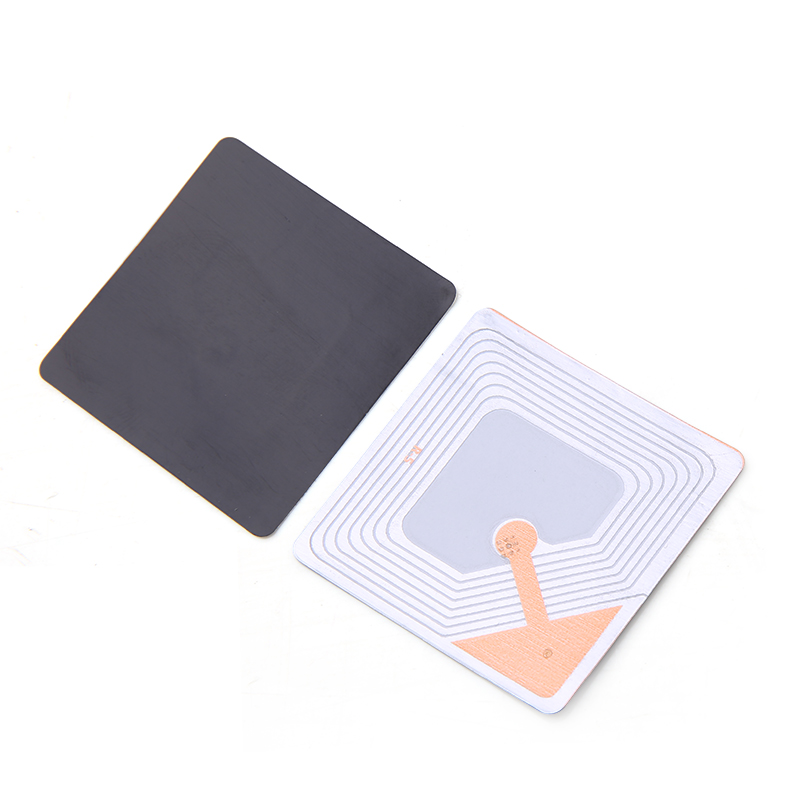

Product Name: Electronic Article Surveillance (EAS) Label
Common specifications (MD × TD): 30 * 30, 30 * 40, round R40, 40 × 40, 50 * 50 (mm). With barcode or blank, respectively, the same specifications blank and barcode price.
Substrate: 20 micron polyethylene
Sensing area: 50 micron aluminum
Capacitor area: 20 micron aluminum
Thickness: 200 microns
Viscosity: hot melt adhesive
Shelf life is 2 years: 10 to 25 degrees Celsius (50 to 70 Chinese degrees), moderately 35% to 65%
Working temperature: minus 40 to 60 degrees Celsius (minus 40 to 140 Chinese degrees)
Operating temperature: above 0 degrees Celsius (32 Chinese degrees)
Electrical performance: Standard
Resonance frequency: 8.2MHz (± 4%)
Effective signal range: ≧ 80-120 cm
Quality factor: Q value ≧ 70 (size: 4 * 4cm, R4cm), the larger the size, the higher the Q value and the wider the sensing distance. On the contrary, the smaller the Q value, the narrower the sensing distance.
Strong demagnetizing field: 0.6A / m—0.9A / m
Working distance: up to 1.2 meters (4.92 feet) in the inspection door
Standard packaging: label side facing out

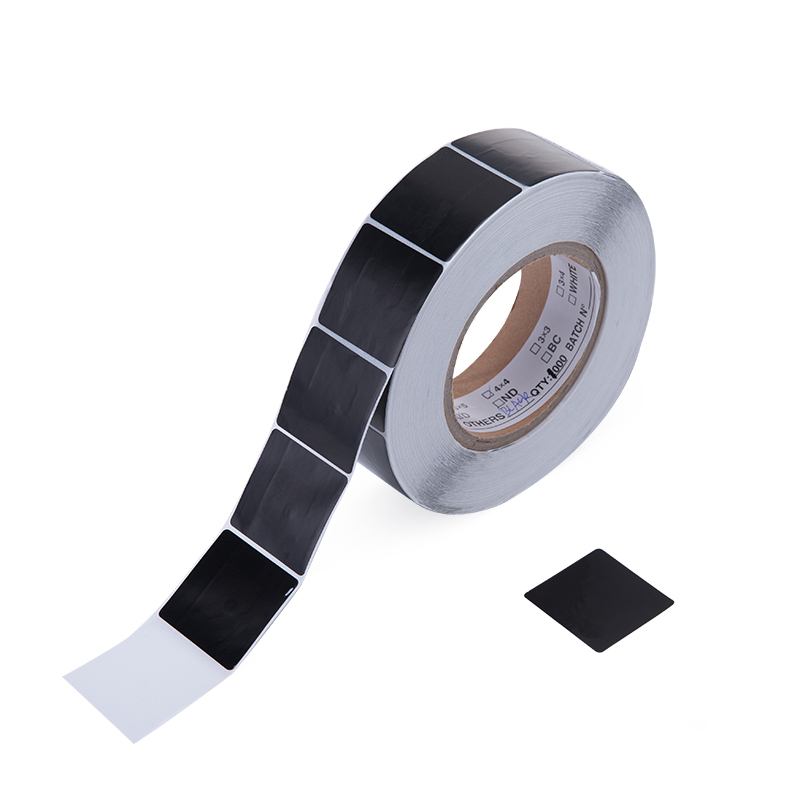

Quantity: 1000 pieces / roll, 500 pieces of jewelry labels / roll
Roll outer diameter is less than 142 mm (5.91 inches)
Cardboard core inner diameter 76.2 mm (3 inches)
20 rolls per carton (roll)
20,000 pieces per box (label)
Box gross weight: 11-13 kg
Box size: 30.5 cm × 30.5 cm × 23.5 cm
|
Model Number |
RF-4040 Black |
|
Size |
40 *40 MM |
|
Type |
Adhesive Sticker |
|
Material |
Paper &Aluminum |
|
Frequency |
8.2MHz /9.5MHz/Custom |
|
Usage |
Anti-theft |
|
Color |
Barcode/ Black/ White/ Transparent/Custom |
|
Q Factor |
≥ 70 |
|
Packing |
20,000 Pcs/Carton (1,000 Pcs/Roll), 0.028CBM/ Carton, 11.8Kgs/Carton |
